Guangzhou EPT Environmental Protection Technology Co.,Ltd
High quality, Best service,Reasonable price.
|Place of Origin:||China|
|Model Number:||F6001 , F6001D , F6002 & F6002D|
|Minimum Order Quantity:||1pc|
|Packaging Details:||1 pc /ctn|
|Delivery Time:||7-10 days|
|Payment Terms:||FOB Shenzhen, L/C, D/A, D/P, T/T, Western Union, MoneyGram|
|Digital Display:||Item Number With D Is With LCD Display||Material:||Metal, Plastic, HEPA Filter|
|Model#::||F6001 , F6001D, F6002 & F6002D||OEM:||Available For Customers|
|Power:||80W Or 200W||Filtering Efficiency:||99.99%|
portable fume extractor,
welding fume extractor

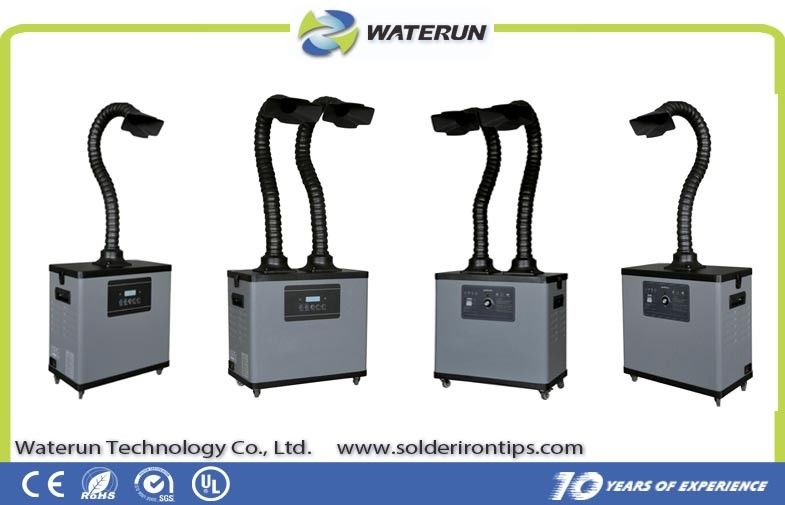

One / Two Ducts Solder Fume Extractor , Polyster Portable Fume Extractor
Our Fume Extractors have been certified with CE security certificate and the purifying effect has been confirmed by American PONY international professional testing agency with the certificates.
This product is suitable for places involved in air pollution like smoke, peculiar smell, dust, poisonous and harmful gas,during the process of soldering, laser marking & carving,printing, and medical care, etc.
With the triple-filter design and powerful suction, the absorbing efficiency and filtration ratio can reach 99.99%. The purified air can be discharged directly indoors.
New design, New Technology:
Fume Extractor Quick Detail:
1. Fume Extractor with Digital Display or without Digital Display
2. Application: fume purifying and filtering
3. Features: Triple-filter design, powerful suction with quiet operation
4. Usage: Used to absorb and filter the harmful fume during the process of soldering, laser marking, printing, etc.
Fume Extractor Description:
It has a triple-filter system:
1) Pre-Filter: the large-size pad filter can filter large particles of dust
2) Middle Filter: it filters the bigger powders for prolonging the main filter's life.
3) Main Filter: it includes HEPA (high efficiency) filter and gas filter. The HEPA cleans the gas and powders filtering from the pre-filter and then carry them to the gas filter. which with the carbon and other chemical combination, filters off the deleterious substance and then outputs the clean air.
1. The fume extractor is designed to filter the harmful substances, such as hydrocarbon and cyanide,
during the process of soldering, tin dipping in the solder pot, laser marking and carving, printing, etc.
2. The fume extractor catches harmful smoke with freestanding ducts and adjustable air volume to
significantly improve your working environment.
3. We have been selling a good quantity of our Fume Extractors to Germany, Israel, UK and a few other
European countries. And we got quite good and positive feedback from them on the quality and
performance of our products.
4. We make really effective Fume Extractors only. They are widely used in the process of soldering, laser
marking & carving, printing, etc.
5. The fume extractor has a triple-filter system.
6. The fume extractor is for cleaning of both particles and gases.
Fume Extractor Features:
1. With the intelligent control panel and digital display, the operation becomes easy and simple. By
pressing the button, you can freely adjust the air volume and set the working time,. you can achieve
real-time monitoring on the working status.
2. With the truly sensitive and effective "Filter Clogging Alarm System". When the filter gets saturated and
clogged, the machine will give sound and light alarms within 20 seconds. It notifies the operator to
replace the filter in time, to guarantee a comfortable working environment.
3. The High-voltage and large-volume brushless motor, ensure low vibration, low noise, stable operation.
and long life span.
4. Ducts can be bent or lengthened as desired and maintain their shape after adjustment, letting you
place them exactly where suction is needed.
5. Equipped with the remote control, the operator can control the machine from a distance.
Fume Extractor Applications:
1. Location: SMT factories, Electronic factories, workshops
2. Fume environmental equipment for workshop, used to absorb and filter the harmful fume during the
process of soldering, laser marking, printing, etc.
Fume Extractor Specifications :
|Model||Voltage||Power||Ducts||Systemic Flow||Air Velocity||Filtering Efficiency||Length of Duct||Noise||Dimensions (mm)||Weight|
|F6001D||110V/220V||80W||1||235m3/h||17m/s||0.3μm 99.97%||Φ75mm x 1.4m||<55dB||420 X 245 X 400||12 kg|
|F6002D||110V/220V||200W||2||2 x 150m3/h||2 x 11m/s||0.3μm 99.97%||Φ75mm x 1.4m||<60dB||420 X 245 X 400||13 kg|
List of the accessories:
|Power Cord||1||1.5M 10A/250V|
|Duct||1 or 2||φ75mm*1.4M||F6002 & F6002D are complete with two ducts.|
|Nozzle||1 or 2||F6002 & F6002D are complete with two nozzles.|
|Pre-filter||5 pcs||QC315||One of the 5 pieces is installed inside the main unit.|
|Middle Filter||1||QP315||Placed inside the Main Filter|
|1||Only for F6001D & F6002D|
